CPM’s (Continous Passive Motion)

CPM is short for Continuous Passive Motion. CPM devices are a rehabilitation tool used to insure that a consistent and precise motion is achieved in a joint post operatively. Continuous refers to the amount of time the device moves the joint. The average daily use of a CPM is 6-8 hours per day. Passive Motion refers to the fact that the device does the work and moves the body part to a specific range of motion. The patient is responsible for increasing the settings on the device and therefore increasing movement of the joint daily until the full range of motion returns. This is usually done over the course of a few weeks. CPM is important in helping blood flow through a post operative joint which in turn, decreases swelling and decreases pain.


Click on the accordions below for more information about the product.

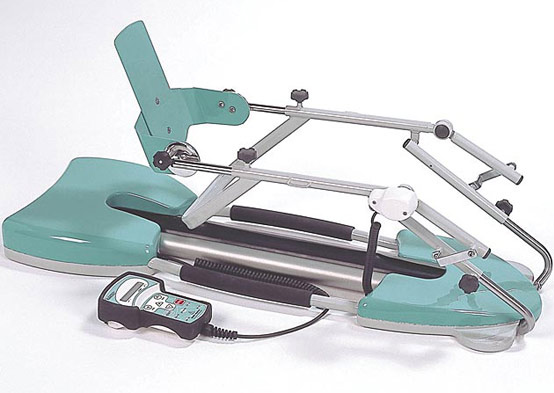

Kinetec Spectra Knee CPM
The Kinetec Spectra Knee CPM represents the latest breakthrough in CPM technology. An unbeatable combination of good looks and mechanical innovation sets Spectra apart as the Knee CPM of choice. The entire spectrum of needs for knee patients can now be addressed with a carriage that accommodates all patients, age 8 to 80-without any additional accessories. Lightweight and exceptionally easy to carry, Spectra offers a quick set-up and practical operational modes that enchance patient comfort, compliance and results.

Kinetec Spectra Knee CPM Specifications:

Range of Motion: Hyperextension (-10°) to full Flexion (120°)

Weight: 24 lbs. (53kg)

Length: 37in (94cm)

Full leg size: 28in -41in (71-104 cm)

Tibia: 15in-23in (38-58 cm)

Femur: 13in-18in (33-46 cm)

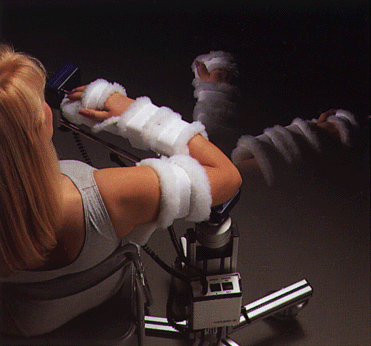

For the hospital, home or work environment the JACE Elbow CPM provides an individually-designed passive motion therapy program for elbow injury or disease.

·  Anatomical Joint Alignment
·  Enhanced Patient Comfort
·  Extension / Flexation from 0-130°
·  Pronation / Supination from 90-0-90°

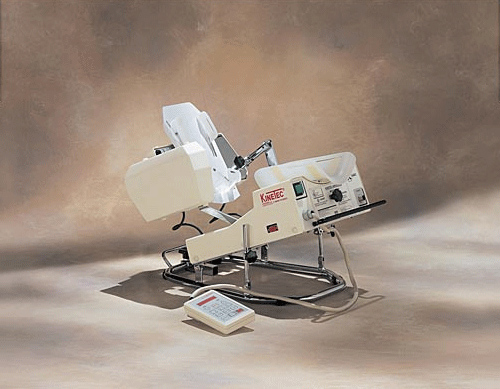

Kinetec Ankle CPM
Three-axis design and adjustable supports provide anatomically correct motion to the ankle and subtalar joint, while the tilting base, variable speed settings and handheld controller enhance patient comfort. Designed for use in a chair or bed, this versatile machine is quiet, easy to use and extremely stable.

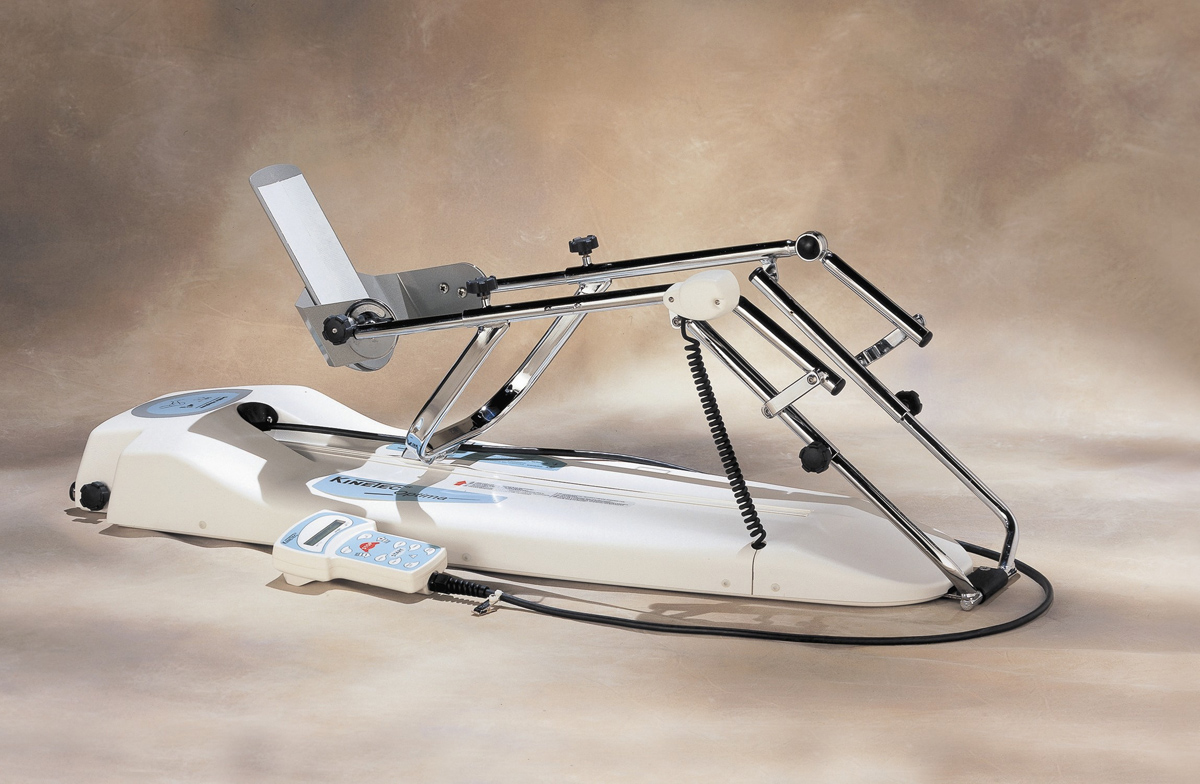

Optima Knee CPM
Designed for a wide variety of CPM knee rehabilitation applications, the Kinetec Optima Knee CPM Machine offers a host of features. A patient lockout switch prevents accidental program changes and potential injuries. Kinetec Optima Knee CPM Specifications: Range of Motion: Knee: -5° to 115°Ankle: Adjusts for 40° plantar flexion, 30° dorsi flexion,30° internal/external rotation

Weight: 29 lbs.(13kg)

Length: 39in (99cm)

Width: 13in (33cm)

Sizing: Adult Pediatric

Femur: 13-18in (33-46cm) 8¼-13in (21-33cm)

Tibia: 15-22in (38-56cm) 105/8-14½in (27-37cm)

Total: 28-40in (71-102cm) 18.875-27½in (48-70cm)

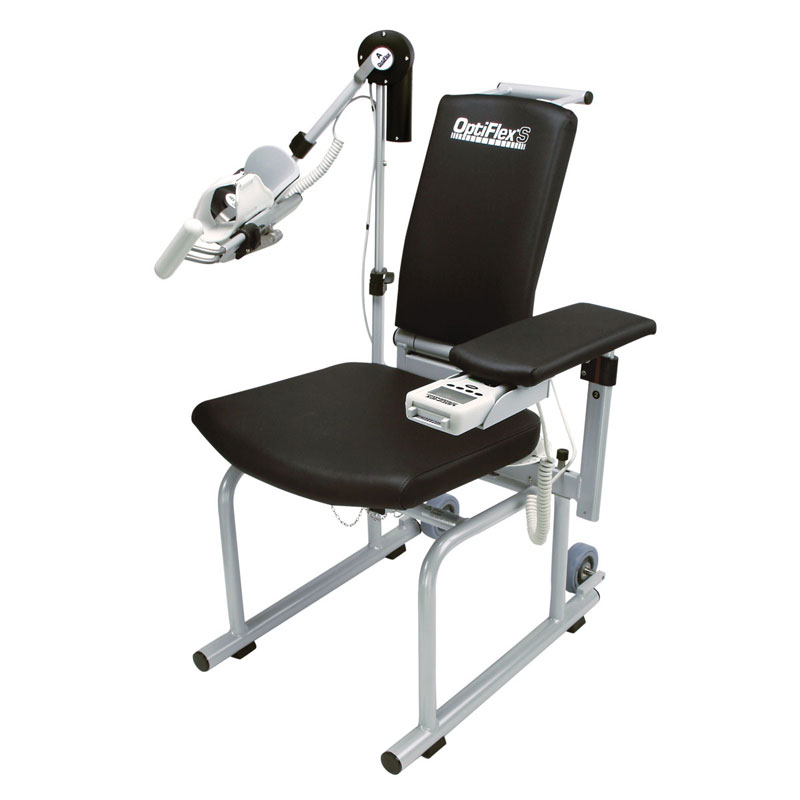

Chattanooga Optiflex Shoulder CPM
Designed to provide anatomical motion for the shoulder, with enhanced patient comfort, compliance and more beneficial outcomes. Addresses full range of motion capabilities. Easy-to-use hand control for storing treatment data on memory chip card Fully synchronized motors allow treatment parameters to be customized to meet patient’s specific therapy protocols.

  • Simple & Effective
  • Ergonomic rest for healthy arm and fully adjustable chair
  • Patented Universal Left or Right Shoulder design
  • Folds easily for transport
  • Lightweight design 55 lbs
  • Two year limited warranty
  • International symbols
  • Patient lock-out feature
  • Accommodates patients 4ft to 6.6ft
  • Shipping Weight : 54 lbs
  • Mains Power : 100V-240V, V AC 50-60Hz

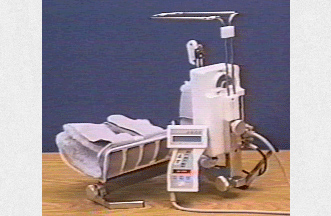

JACE Systems now extends the benefits of CPM to the toe. The only Continuous Passive Motion (CPM) device specifically designed to assist with rehabilitation of the toe joints. Whether applied immediately post-op or following cast removal, CPM is of value by facilitating earlier motion as well as earlier return to normal function following such procedures as bunionectomy, tendon reconstructions, and joint implants.

The T300 is designed for safe, simple patient operation.
· The hand-held controller allows the operator to conveniently control all functions.
· The T300 is designed for use in a sitting or supine position and easily adjusts for either the right or left foot.
· The T300 provides pre-set adjustable range of motion from 0 – 600 flexion (plantar flexion) to 0 – 900 extension (dorsiflexion). In addition, both the force and speed of operation are adjustable to better meet the individual requirements of each patient.

· Weight 11 lbs.
· Length 17in
· Width 15in
· Power Transformer Input: 120 VAC 50-60 Hz
· Transformer Output: 12 VDC Less than 25 watts
· Safety Features Automatic reversal based on customized patient profiles

· Reduces pain
· Reduces edema
· Improves joint nutrition
· Increases ROM
· Reduces adhesions
